GFC Rigid Clamp Coupling Shaft Coupling Flexible Coupling

GFC Rigid Clamp Coupling Shaft Coupling Flexible Coupling

Nazwa marki:	Tianniu
Numer modelu:	GFC
MOQ:	1 szt
Cena £:	negotiable
Czas dostawy:	3-5 dni roboczych
Warunki płatności:	T/T, Western Union, Moneygram, L/C, D/A, D/P

Informacje szczegółowe

Opis produktu

Informacje szczegółowe

Miejsce pochodzenia:

Chiny

Orzecznictwo:

ISO 9001

Model:

ZŁĄCZE SZCZĘKOWE GFC

Gwarancja:

12 miesięcy

Rozmiar otworu:

3-55mm

Długość:

14-95 mm

Touque:

5-250

Szczegóły pakowania:

Kartony drogą morską drogą lotniczą

Możliwość Supply:

10 000 miesięcznie

Podkreślić:

rigid clamp shaft coupling

flexible coupling plum shaft

GFC shaft coupling with warranty

Opis produktu

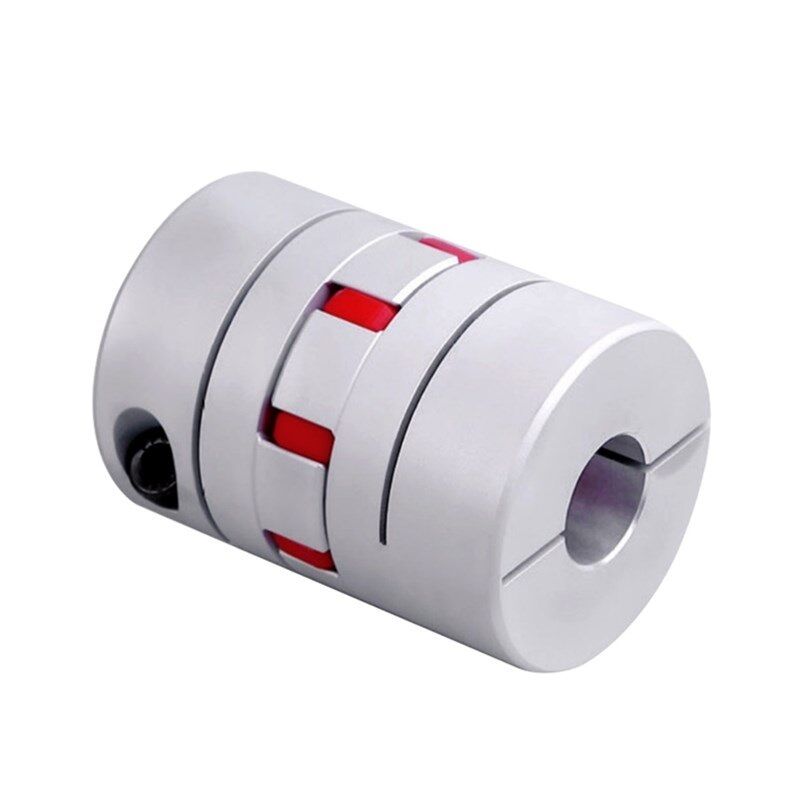

GFC Rigid Clamp Coupling Shaft Coupling Flexible Coupling

GFC Rigid Clamp Coupling Shaft Coupling Flexible Coupling 0

Products Features

>High torque rigidity, can accurately control the rotation of the shaft, can carry out high-precision control
>Designed for servo and stepping motor
>No gap between the shaft and sleeve connection, general for positive and negative rotation
>Low inertia, suitable for high speed operation
>The diaphragm is made of spring steel with excellent fatigue resistance

Products Parameters

model parameter	common bore diameter d1,d2	ΦD	L	LF	LP	F	M	tightening screw torque (N.M)
GFC-14X22	3,4,5,6,6.35	14	22	14.3	6.6	5.0	M2.5	1.0
GFC-20x25	3,4,5,6,6.35,7,8,9,9.525,10	20	25	16.7	8.6	5.9	M3	1.5
GFC-20X30	3,4,5,6,6.35,7,8,9,9.525,10	20	30	19.25	8.6	5.9	M3	1.5
GFC-25X30	4,5,6,6.35,7,8,9,9.525,10,11,12	25	30	20.82	11.6	8.5	M4	2.5
GFC-25X34	4,5,6,6.35,7,8,9,9.525,10,11,12	25	34	22.82	11.6	8.5	M4	2.5
GFC-30x35	5,6,6.35,7,8,9,10,11,12,12.7,14,15,16	30	35	23	11.5	10	M4	2.5
GFC-30X40	5,6,6.35,7,8,9,10,11,12,12.7,14,15,16	30	40	25	11.5	10	M4	2.5
GFC-40X50	6,8,9,10,11,12,12.7,14,15,16,17,18,19,20,22,24	40	50	32.1	14.5	14	M5	7
GFC-40X55	6,8,9,10,11,12,12.7,14,15,16,17,18,19,20,22,24	40	55	34.5	14.5	14	M5	7
GFC-40X66	6,8,910,11,12,12.7,14,15,16,17,18,19,20,22,24	40	66	40	14.5	14	M5	7
GFC-55X49	10,11,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32	55	49	32	16.1	13.5	M6	12
GFC-55X78	8,10,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32	55	78	46.4	16.1	19	M6	12
GFC-65X80	14,15,16,17,18,19,20,22,24,25,28,30,32,35,38,40	65	80	48.5	17.3	14	M8	20
GFC-65X90	14,15,16,17,18,19,20,22,24,25,28,30,32,35,38,40	65	90	53.5	17.3	22.5	M8	20
GFC-80X114	19,20,22,24,25,28,30,32,35,38,40,42,45	80	114	68	22.5	16	M8	20
GFC-95X126	19,20,22,24,25,28,30,32,35,38,40,42,45,50,55	95	126	74.5	24	18	M10	30

model parameter	Rated torque (N.M)*	allowable eccentricity (mm)*	allowable deflection angle (°)*	allowable axial deviation (mm)*	maximum speed rpm	static torsional stiffness (N.M/rad)	moment of inertia (Kg.M2)	weight (g)
GFC-14X22	5.0	0.1	1	±02	10000	50	1.0x10-6	10
GFC-20X25	5.0	0.1	1	±02	10000	50	1.0x10-6	15
GFC-20X30	5.0	0.1	1	^02	10000	53	1.1x10-6	19
GFC-25X30	10	0.1	1		10000	90	5.2X10-6	33
GFC-25X34	10	0.1	1	£)2	10000	90	5.2x10-6	42
GFC-30X35	12.5	0.1	1	±02	10000	123	6.2x10-6	50
GFC-30x40	12.5	0.1	1	102	10000	123	6.2x10-6	60
GFC-40X50	17	0.1	1		8000	1100	3.8x10-5	115
GFC-40X55	17	0.1	1	±02	8000	1100	3.8x10-5	127
GFC-40X66	17	0.1	1		7000	1140	3.9x10-5	154
GFC-55X49	45	0.1	1	±02	6500	2350	1.6x10-3	241
GFC-55X78	45	0.1	1	102	6000	2500	1.6x10-3	341
GFC-65X80	108	0.1	1	±02	5500	4500	3.8x10-3	433
GFC-65X90	108	0.1	1	±02	5500	4800	3.8x10-3	583
GFC-80X114	145	0.1	1	£)2	4500	5000	1.8x10-3	1650
GFC-95X126	250	0.1	1	±02	4000	5000	2.0x10-3	1000
